Abundance is the opening act — not the reason

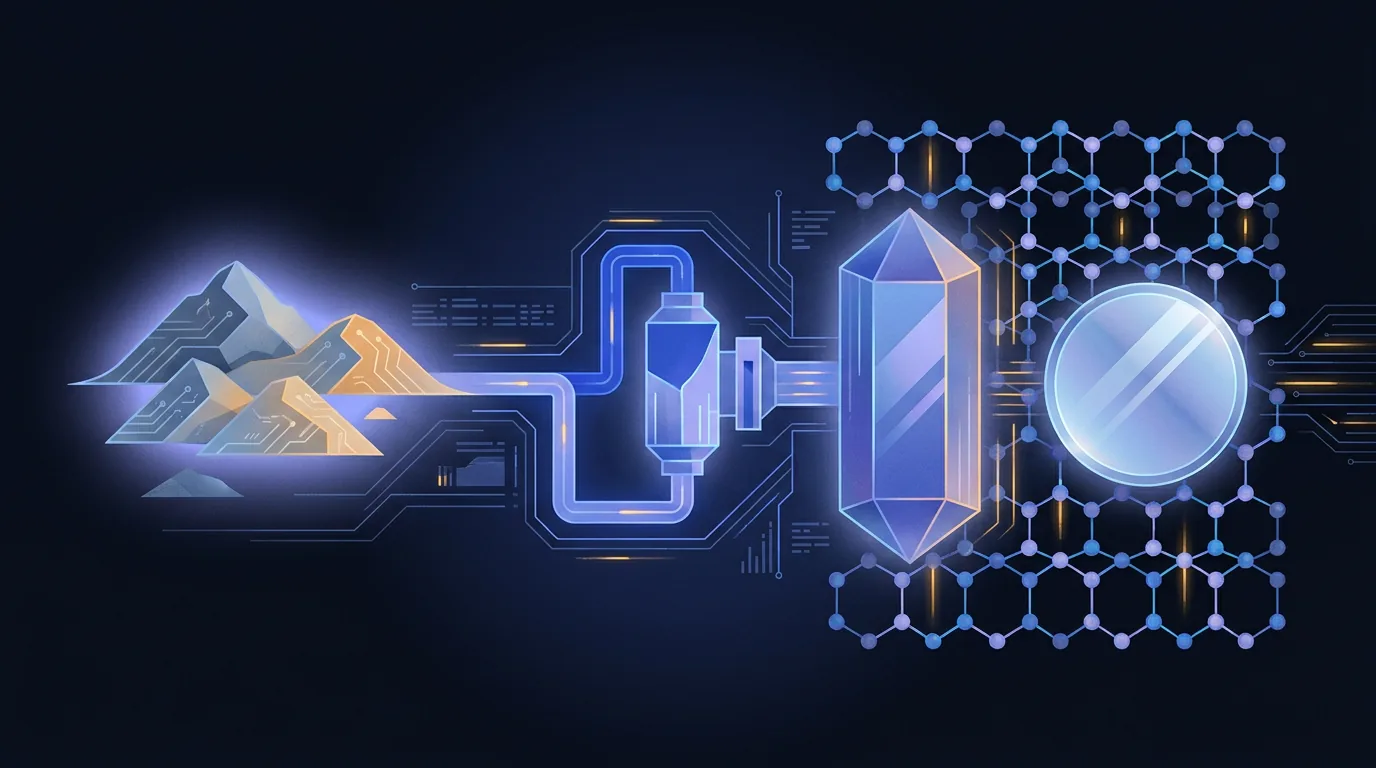

Silicon is refined beach sand. It is the second most abundant element in Earth's crust after oxygen, so the raw material is effectively free and inexhaustible. That is a real advantage — you could never run a planet-scale industry on something scarce — but abundance alone explains nothing. Oxygen and aluminium are abundant too, and no one builds processors from them.
The reason an entire valley is named after silicon is a rare combination of three properties that almost no other material has all at once. Miss any one of them and you get a laboratory curiosity, not a global industry.
Reason one: it grows a flawless crystal
A silicon atom has four outer electrons, and it uses every one to bond with a neighbour. The result is a diamond-cubic lattice in which each atom holds hands with four others in a perfectly repeating three-dimensional pattern. That regularity is not a nicety — it is what makes devices predictable. Billions of transistors on one chip only behave identically because the crystal beneath them is identical everywhere.
Better still, silicon can be pulled from a molten bath into a single crystal — a cylindrical boulenearly two metres long — and purified along the way to "nine nines": 99.9999999% pure. Slice the boule into thin discs and you have wafers: flat, flawless, single-crystal canvases on which the whole industry paints.
Reason two: the band gap is just right
Every semiconductor has a band gap — the energy an electron must gain to break free of its bond and carry current. Silicon's is about 1.1 eV, and that number is a Goldilocks value. Small enough that a tiny voltage can push electrons across it, so the material switches on cheaply. Large enough that random room-temperature heat rarely pushes them across by accident, so it doesn't leak when it should be off.
Contrast the neighbours. Germanium's gap is only 0.66 eV — so leaky and temperature-sensitive that circuits drift as they warm. Diamond's is 5.5 eV — a cliff no ordinary voltage can drive an electron over, so it won't switch at all. Silicon sits in the sweet spot between "leaks too easily" and "won't budge."
Germanium conducts better than silicon and powered the very first transistors. Why did the industry switch to silicon by around 1960?
Reason three: it grows its own insulation
This is the quiet property that actually decided history. Heat silicon in oxygen and its surface turns to SiO₂ — silicon dioxide, ordinary glass. But this glass is special: it is atomically clean, chemically stable, and bonds perfectly to the silicon beneath it. A transistor needs exactly such a thin, flawless insulator between its gate and its channel, and silicon grows one for free.
The first transistors were made of germanium, which conducts better. But germanium's oxide, GeO₂, is water-soluble — it crumbles and washes away, useless as a gate insulator. When the planar manufacturing process arrived around 1960 and made a good surface oxide essential, the industry switched to silicon and never looked back. Silicon didn't win because it was the best conductor. It won because it came with its own glass.
The runners-up — and why they still exist
Silicon is the general-purpose champion, not the winner of every event. Several rivals beat it on one axis and survive precisely there. Compare them below.
The general-purpose champion. Switchable, insulable, and abundant — the only material that scores well on all three at once.
Gallium arsenide and indium phosphide move electrons fast and handle light, so they run high-frequency radios, lasers, and fibre-optic links. Gallium nitride and silicon carbide tolerate high voltage and heat, which is why they sit inside fast chargers and electric-vehicle drivetrains. Each has a band gap tuned to a different job. But none combines a workable gap, a flawless cheap crystal, and a free high-quality oxide — so silicon keeps the general-purpose crown, and the others take the specialist medals.
Gallium arsenide has an excellent band gap and is superb at high-frequency and optical jobs. So why isn't it the general-purpose chip material?
Abundance closes the deal
Now the opening act pays off. Once a material can switch, insulate itself, and form a flawless crystal, the last question is whether you can make it by the tonne, cheaply, forever. Silicon can: it starts as sand. A rival that matched silicon's physics but cost a hundred times more, or existed only in trace amounts, could never support a trillion-chips-a-year industry.
So the full answer to "why silicon?" is not one property but a stack of them, each necessary: a perfect crystal, a Goldilocks band gap, a self-grown oxide, and near-infinite cheap supply. The next layer down — how engineers turn plain silicon into the two flavours that make a transistor — is doping.
Key takeaways
- Abundance opens the case but doesn't decide it — silicon is refined sand, but so are many useless materials.
- It grows a flawless single crystal (four bonding electrons → diamond lattice, 9-nines pure boules and wafers), making billions of identical devices possible.
- Its 1.1 eV band gap is the Goldilocks value — small enough to switch cheaply, large enough not to leak at room temperature.
- It grows its own SiO₂ glass insulator — the property that beat germanium and made modern manufacturing possible.
- Rivals (GaAs, GaN, SiC, InP) win single specialist events; only silicon scores well on all axes at once.
Frequently asked questions
Why is silicon used to make computer chips?
Three properties, together. First, silicon grows a near-perfect crystal — its four bonding electrons let each atom lock to four neighbours in a flawless repeating lattice, which can be pulled as a single crystal and purified to 99.9999999%. Second, its band gap of about 1.1 eV is a Goldilocks value: small enough to switch with tiny voltages, large enough not to leak at room temperature. Third, heated in oxygen it grows its own oxide — SiO₂, ordinary glass — a stable, atomically clean insulator for free. Abundance and low cost then seal the deal.
Why was silicon chosen over germanium?
Germanium actually conducts better and powered the first transistors in the late 1940s and 1950s. But germanium's native oxide (GeO₂) is water-soluble and crumbles, so it can't be used to build a clean, stable gate insulator. Silicon's oxide is a superb, durable glass. Because the whole planar manufacturing process depends on growing a good oxide on the surface, the industry switched to silicon around 1960 and never looked back — despite germanium's better raw conductivity.
Is silicon the best semiconductor?
It's the best general-purpose one, not the best at everything. Gallium arsenide and indium phosphide beat silicon at very high frequencies and at emitting and moving light. Gallium nitride and silicon carbide handle high power and heat better, which is why they run fast chargers and electric-vehicle drivetrains. Silicon wins the general-purpose crown because it uniquely combines a workable band gap, a flawless crystal, a free high-quality oxide, and unbeatable cost and abundance.
What is silicon made from?
Refined sand. Silicon is the second most abundant element in Earth's crust after oxygen, and most of it exists as silica (SiO₂) — quartz and ordinary sand. To make chips, quartzite is reduced to metallurgical silicon, purified through chemical steps to 'nine nines' purity (99.9999999%), and then pulled from a melt into a single large crystal called a boule, which is sliced into the wafers chips are built on.
Why does silicon's oxide layer matter so much?
Because a transistor needs a thin, flawless insulator between its gate and its conducting channel, and silicon grows exactly that for free. Heat silicon in oxygen and its surface turns to SiO₂ — a stable, atomically clean glass that bonds perfectly to the silicon beneath it. This self-grown insulator is what makes the planar process — the way essentially all modern chips are built — possible. It's the quiet property that decided which material would run the world.
